The Carlton
by Home Builders Catalog Co. · public domain3 bed · 1 bath · 42'0" × 32'0" over all (main block 29'6" × 24'0") · 2-story
Tudor-influenced two-story: living, dining, kitchen and sun room down; three chambers and bath up. Ceilings 8'6" / 8'0". AUTONOMOUS import (single-pass read, graded by the pipeline's own checks; not yet human-verified).
Imported by autoloop (autonomous single-pass import; not yet human-verified) on 2026-07-18 · reproduction model last updated 2026-07-19 · repro-engine v3 · plan-schema v1
The published design

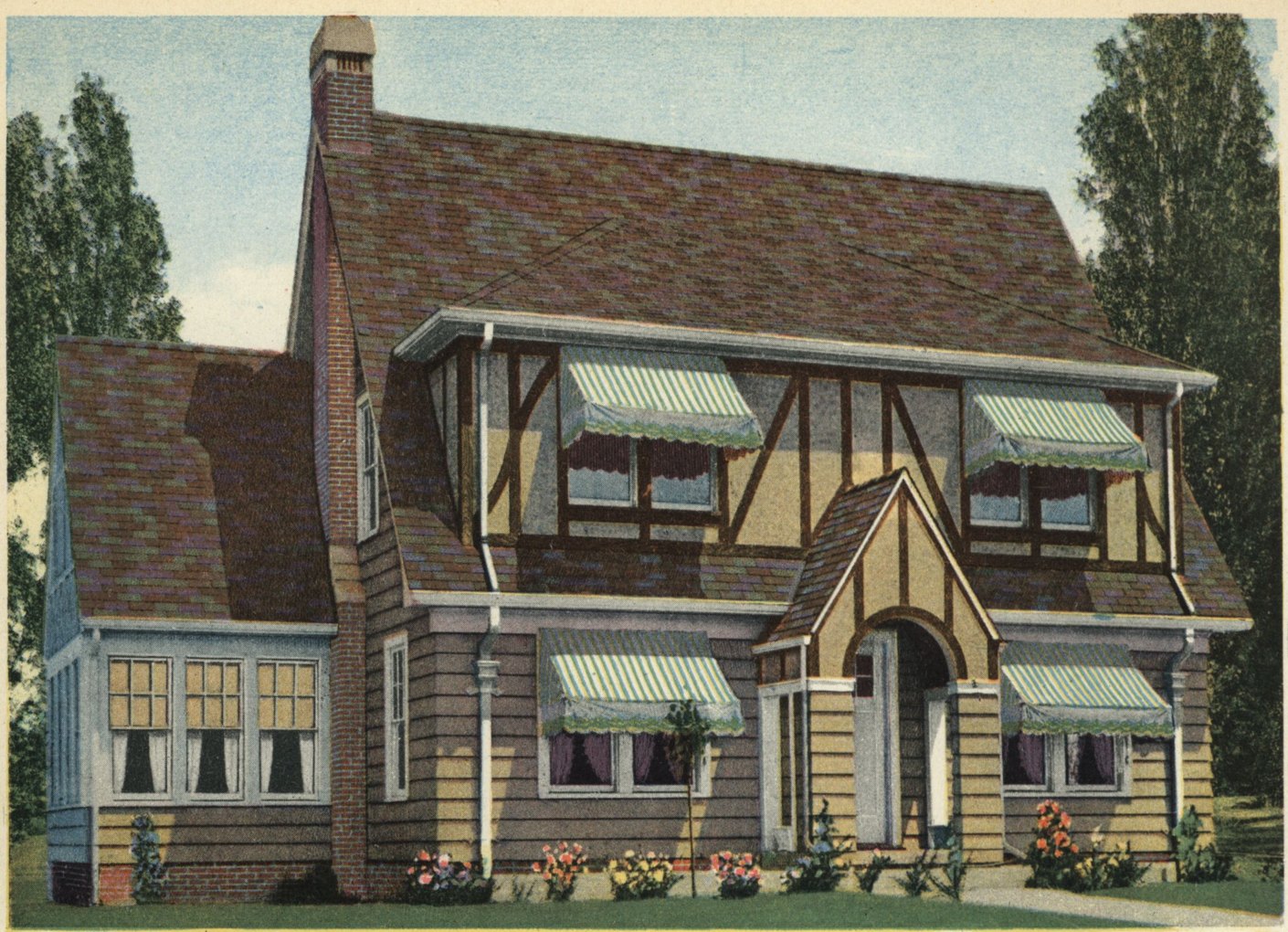

“The blending of color and texture by using various materials give the ‘Carlton’ an appearance all its own. The interior arrangement is very practical and consequently proves highly acceptable to the housewife. Asphalt shingles are used on the roof.” — Home Builders Catalog, p. 642 (1928). 6 rooms, bath and sun room; blue-print working plans sold for twenty dollars.
Our model of the published plan, graded by the independent evaluator across 2 floors— it shares no code with our generator, so it isn't grading its own homework. Read from an AI vision pass at 80% confidence; the model is approximate.
Replication fidelity — measured against the published drawing

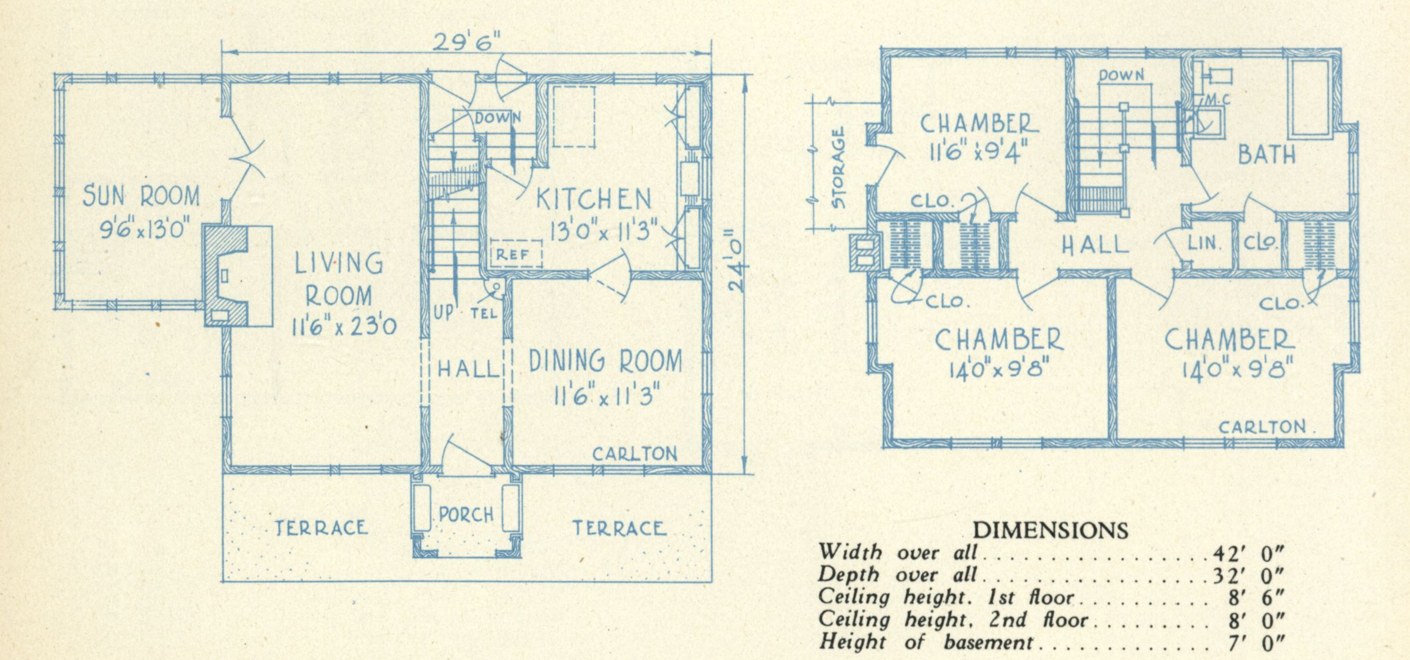

Scored floor-by-floor against a transcription of the source sheet (room set, door graph, area shares, interior dimensions) — gated in CI so it can't silently regress. Compare for yourself: the published drawing ↗ (Public Domain Mark 1.0 (published 1928, US)).
Ground floor29×23.15 ft · 5 rooms
SunRoom (10′×13′) projects from the left of the main block — the tiled model shows the rectangular core true to the plate; the Reproduction and Source underlay views draw the wing in place. Full polygonal-envelope support is on the engine roadmap.
Auto-generated wall-first reproduction seeded from the AI read — NOT yet human-verified; the amber score is its honest ink match. The refine loop and the review queue improve it.
Code & program
✓ none flagged
Best practice
- !primary suite barely larger than a secondary bedroom (1.00×)
- !14% of the floor is hallway/foyer
Fixture clearance
✓ standard fixtures fit
Upper floor31×22.65 ft · 7 rooms
Auto-generated wall-first reproduction seeded from the AI read — NOT yet human-verified; the amber score is its honest ink match. The refine loop and the review queue improve it.
Code & program
✓ none flagged
Best practice
- !20% of the floor is hallway/foyer
- !1 room(s) shaped like a corridor (>2:1)
Fixture clearance
- ✗stairs blocks the doorway of Stair2
A vision read of the published drawing, snapped to a grid — approximate. Each floor is read + modeled separately (upper floors are reached by the stair).
Credit & license
Design from the 1928 "Home Builders Catalog" (Home Builders Catalog Co., of Chicago), digitized by the Internet Archive's Building Technology Heritage Library — public domain. The catalog page images shown are the original publication; the floor-plan model beside them is Almost an Architect's approximate reconstruction.
See the original at archive.org. This design is in the public domain (Public Domain Mark 1.0 (published 1928, US)); the page images shown are from the original publication.
Preliminary and advisory — a machine evaluation of an approximate model, never a stamped review. Bring a real plan and a licensed professional for anything you intend to build.
